HM9 Sapphire Vision

• Limited Edition: 5 pieces
• Case: sapphire crystal with frame in red gold (5N+). Hour/minute dial in sapphire crystal with anti-reflective treatment and Super-LumiNova on the numbers and indexes. Unique assembly process of the three sapphire crystal case parts with a patented three-dimensional gasket and high-tech bonding compound.
• Size: 57 x 47 x 23mm
• Movement: hand-wound in-house caliber
• Function: Two fully independent balance wheels with planetary differential, Dual spherical turbines under the movement, Shock-absorbing helicoidal springs linking the movement to the case.
• Power Reserve: approximately 45 hours
• Water Resistance: 30m
• Dial: blue
• Caseback: sapphire crystal
• Strap/Bracelet: Hand-stitched black alligator strap with red gold folding buckle matching the case.

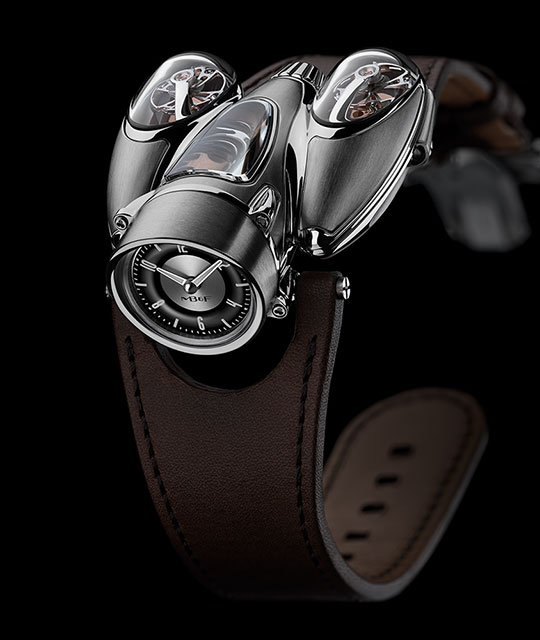

First presented in 2018, Horological Machine N°9 – nicknamed HM9 ‘Flow’ – was a tribute to the extraordinary automotive and aeronautic designs of the 1940s and 50s. The result was a case like no other that echoed the epoch’s flowing, aerodynamic lines.

Despite its striking external appearance, MB&F founder Maximilian Büsser described the engine inside HM9 as “the most beautiful movement we’ve created to date”. What other logical step was there to take, if not to encase the HM9 engine in a transparent sapphire crystal shell?

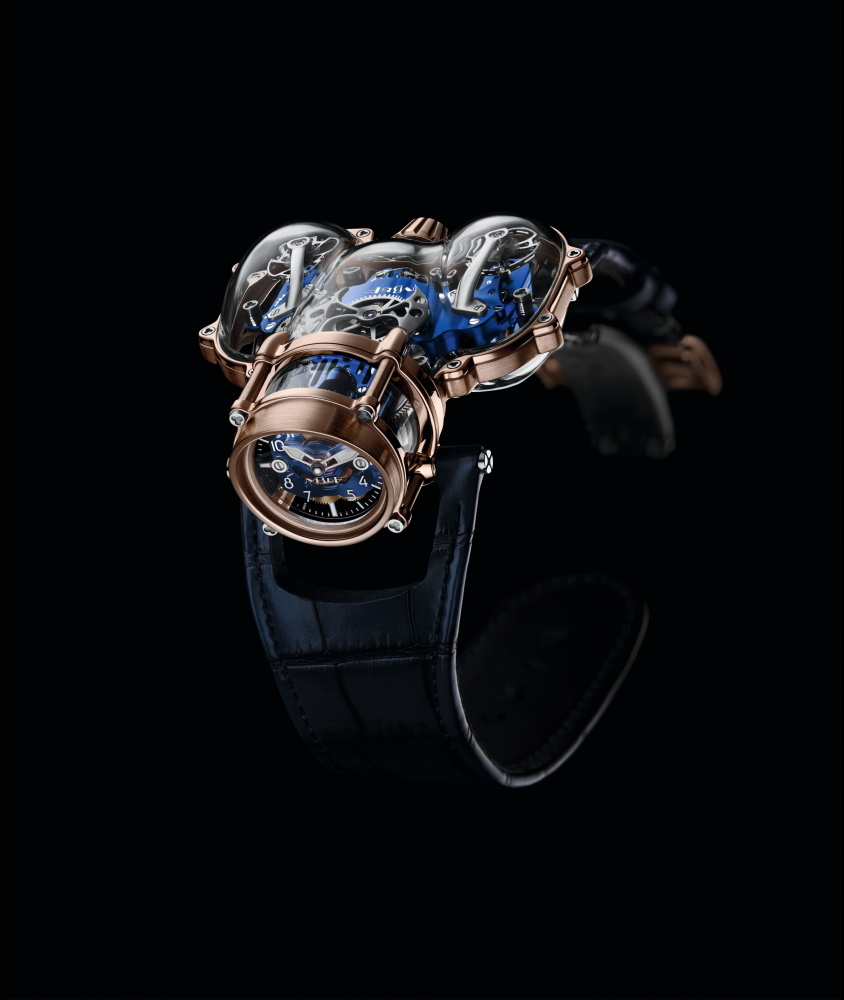

Presenting Horological Machine N°9 ‘Sapphire Vision’ – aka HM9-SV.

An outer hull of sapphire crystal and precious metal, curved and bubbled and precisely fitted together in three parts, is sealed with a proprietary combination of patented three-dimensional gasket and high-tech compound bonding process. Two fully independent cantilevered balances channel data into a differential that turns two heartbeats into one coherent time-pulse. Ultra-precise conical gears efficiently turn the engine’s energy and information current through a 90° angle to feed the time display on a sapphire crystal dial, marked with Super-LumiNova.

On the reverse, co-axial beneath each of the balances are propellers: twin turbines that spin freely as an element of pure visual interest, waiting for someone to begin a new type of exploration. Two years after the initial HM9 Flow ‘Air’ and ‘Road’ editions conquered land and sky, HM9-SV takes us to the depths of the ocean – the last realm on Earth that still holds a wealth of untold secrets. Before you is an exploratory vessel from Atlantis, powered by a divergent technology both familiar and strange to our eyes.

Externally, the lines of HM9-SV glide over the blueprint of its Road and Air-designated predecessors. The laws of fluid dynamics remain dominant in its design, although the hydro-governed objectives allow HM9-SV to take a more lenient approach to the sharp inward angles and parabolic curves of the previous Flow versions. From a technical standpoint, the reworked dimensions were necessary to account for the differences in material properties of sapphire crystal; although extremely hard, sapphire can fracture sharply under pressure whereas a metal would merely deform. The smoother lines of HM9-SV minimise potential areas of mechanical vulnerability – but they also reinforce its ocean-dweller’s aesthetic.

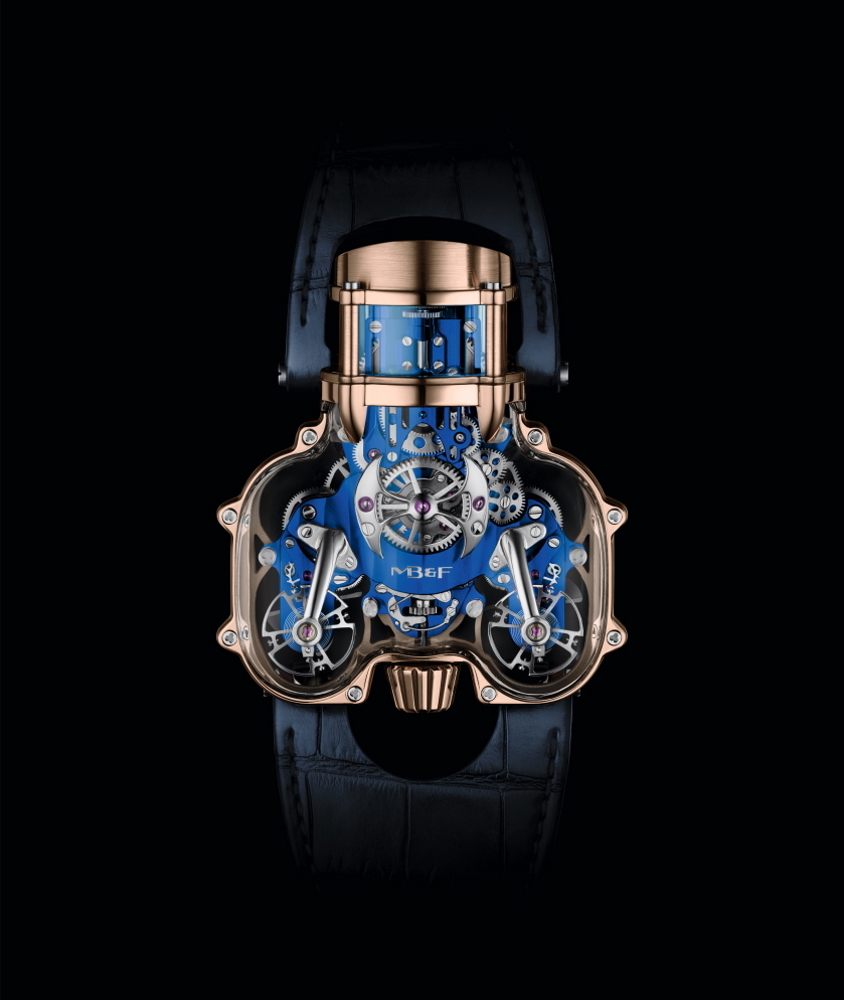

The HM9 engine follows in the paths opened by the engines of Horological Machines N°4 and N°6, casting aside conventions of movement construction. Its three-dimensional assemblage of wheels, gears, plates and bridges takes unexpected forms to inhabit the dynamic outer case, a beating union of mechanical viscera and endoskeleton in a crystalline body.

A traditional balance frequency of 2.5Hz (18,000vph) may seem curiously anachronistic in a modern timekeeper, but the sensitivity to shock associated with a lower beat rate is compensated for by having two balances instead of one. Statistically speaking, two identically calibrated systems offer a better averaged reading than one system on its own, which may deliver anomalous results for any number of reasons.

To further reduce sensitivity to shocks, the HM9-SV editions feature a new shock-absorbing system: helicoidal springs placed between the movement and the case. The springs are crafted by laser from a solid tube of polished stainless steel, offering excellent elasticity and limited lateral displacement.

Performing the task of averaging the time measurement from the twin balances of the HM9 engine is a planetary differential, the gearbox of the movement, which then delivers a final reading to be displayed on the perpendicularly oriented dial. This complex mechanical computation was partially revealed in the original HM9 Flow, with sapphire crystal domes set over each balance and with a magnifying pane mounted above the planetary differential, visually emphasizing the importance of its chronometric role. In HM9-SV, every aspect of the engine is open to discovery; the eye can follow the interplay of components from barrel to balance, from differential to dial.

In order to seal the sapphire crystal exterior components into one watertight case, new solutions had to be created. A patented three-dimensional rubber gasket was already used in the original HM9 Flow to ensure water resistance when the tripartite case was bolted together. The 3-D gasket remains in HM9-SV, but the sapphire crystals are fused with the metallic frame thanks to a high-tech bonding compound, mastered via an in-house process involving a vacuum and high temperature. The result is a seal resistant to 3ATM (30m) of water pressure, despite practically invisible seams between the sapphire components and the minimalistic frame in 18K gold.

HM9 Sapphire Vision comes in four editions, each limited to only five pieces: two editions with 18K red gold frame, combined with a NAC-coated black or a PVD-coated blue engine; and two editions with 18K white gold frame, featuring a PVD-coated purple or a red gold plated engine.
